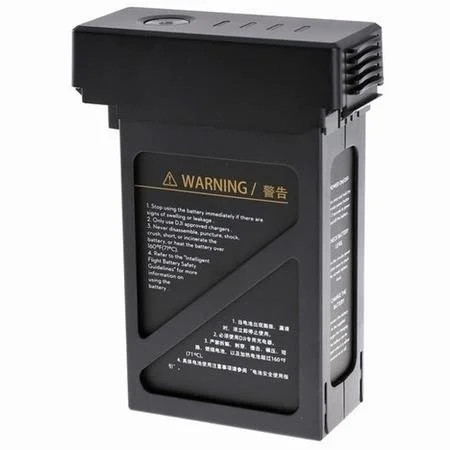

DJI Matrice 600/600 Pro TB48S Intelligent Flight Battery

The DJI Matrice 600 Series Intelligent Flight Battery (TB48S) is a high-capacity 5700 mAh power solution engineered for heavy-lift enterprise platforms. Optimized for stability and safety, this 6S LiPo battery features an integrated management system that provides real-time telemetry, ensuring reliable performance during demanding industrial imaging and cinematic flight missions.

DJI Matrice 600 Series Battery - Heavy-Lift Reliability and Power

The TB48S Intelligent Flight Battery is the primary power component for the Matrice 600 series, designed to sustain heavy-lift operations with precision. With its 5700 mAh capacity, this battery ensures that the M600 platform maintains the necessary current output for high-torque motors and professional gimbal systems. Its intelligent circuitry monitors internal temperature and cell status in real-time, providing pilots with the transparency needed to execute long-duration missions with total confidence.

• High-capacity 5700 mAh LiPo 6S architecture for professional heavy-lift power.

• Integrated intelligent management system for real-time status and health monitoring.

• Optimized for high-current discharge to support professional multi-sensor arrays.

• Advanced safety protocols protect against overcharging and over-discharging.

• Features a high-brightness LED indicator for instant battery level verification.

• Designed for stable power delivery in various industrial and cinematic applications.

• Engineered to operate reliably in a wide range of environmental conditions.

Performance & Technical Specifications

Pro Insight: The TB48S is built for maximum thermal stability, ensuring consistent voltage delivery even during high-altitude manoeuvres or when supporting heavy 6 kg payloads.

• Capacity: 5700 mAh

• Voltage: 22.8 V

• Battery Type: LiPo 6S

• Energy: 129.96 Wh

• Op. Temperature: -10° to 40° C (14° to 104° F)

• Max Charging Power: 180 W

Core System Capabilities

Intelligent Energy Management

The TB48S features a built-in energy management system that continuously tracks battery status. This information is transmitted to the flight controller, allowing the Pilot app to display precise remaining flight time and health data. This capability is essential for managing the six-battery configuration used by the Matrice 600 platform.

High-Current Performance

Engineered for heavy-lift airframes, the TB48S provides a stable discharge curve that handles the rapid power fluctuations required by high-torque motors. This ensures the aircraft remains responsive even when equipped with maximum payload capacities for surveying or filmmaking.

Advanced Safety Protections

The intelligent circuitry includes self-protection features that prevent damage during charging and storage. If left unused for extended periods, the battery will automatically discharge to a storage-safe level to preserve cell health and longevity.

Operational Workflows & Safety

• Industrial Surveying: Powers the Matrice 600 for long-duration mapping missions, providing the stability needed for high-accuracy photogrammetry.

• Cinematic Production: Supports heavy-duty gimbals and cameras for professional filmmaking, ensuring smooth power delivery throughout complex shots.

• Public Safety: Reliable power for emergency response and SAR operations, allowing the aircraft to stay airborne for critical surveillance tasks.

Compatible Products

• Aircraft Platforms: DJI Matrice 600 and DJI Matrice 600 Pro.

• Charging Equipment: Matrice 600 Series Battery Charging Hub and Matrice 600 Series 180W Power Adapter.

Frequently Asked Questions

Why does the Matrice 600 use six TB48S batteries simultaneously?

The six-battery system provides redundancy and the necessary voltage to power the heavy-lift motors. If one battery encounters an issue, the others ensure the aircraft can land safely.

How should the TB48S be maintained for long-term health?

The intelligent system manages self-discharge to protect the cells, but regular health checks via the Pilot app are recommended to monitor cycle counts and overall status.

Can I use the TB48S in cold weather?

The battery is designed for operation down to -10° C (14° F). In colder environments, it is recommended to ensure the batteries are pre-warmed for optimal performance.

What’s in the Box

• 1x DJI Matrice 600 Series Intelligent Flight Battery (TB48S)

Dronedesk Expert Tip: In our field testing, we have found that utilizing the TB48S in conjunction with Dronedesk's 'Flight Logging' and 'Asset Management' features allows you to track battery cycle counts and health history, ensuring your heavy-lift fleet remains mission-ready and compliant with maintenance schedules.
