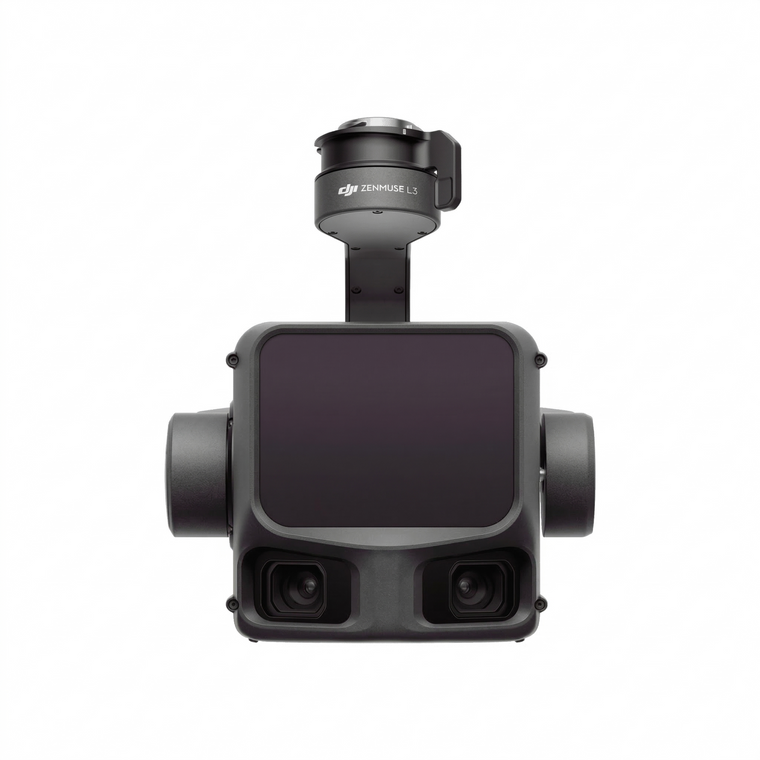

DJI Zenmuse L3 - Long-Range LiDAR Mapping Payload with 1-Year Care Enterprise Plus

The DJI Zenmuse L3 represents the next generation of aerial surveying, delivering high-precision 3D data acquisition through an integrated LiDAR and mapping camera system. It provides a comprehensive solution for professional geospatial surveying, infrastructure management, and forestry by streamlining the capture of dense, accurate point clouds.

DJI Zenmuse L3 LiDAR System - Advanced Geospatial Intelligence

The Zenmuse L3 is engineered to push the boundaries of reality capture, offering professional operators a seamless integration of high-accuracy sensors for rapid 3D modelling. By leveraging advanced frame LiDAR technology and a high-accuracy IMU system, it enables the generation of centimetre-level accurate maps and models in a single mission. This system is designed to overcome the challenges of complex environments, ensuring reliable data collection even in areas with dense vegetation or intricate structural details.

• Integrated frame LiDAR system for rapid and precise point cloud acquisition.

• Self-developed high-accuracy IMU system for enhanced data stability.

• Professional RGB mapping camera for high-fidelity point cloud colorization.

• Centimetre-level horizontal and vertical accuracy for engineering-grade projects.

• Exceptional operational efficiency for large-scale area mapping.

• Superior penetration capabilities for capturing ground details beneath dense foliage.

• Real-time Point Cloud LiveView for immediate on-site verification.

• Seamless turnkey solution when paired with DJI Terra for post-processing.

Performance & Technical Specifications

Pro Insight: The L3’s advanced sensor suite is designed for maximum reliability, offering an IP-rated housing that protects the optics during demanding industrial missions.

• LiDAR Type: High-precision frame LiDAR with multiple return support.

• Ingress Protection: IP54 rated for environmental durability.

• Accuracy (at 150m): Horizontal: 5 cm; Vertical: 4 cm.

• Detection Range: Up to 450 m at 50% reflectivity.

• Point Cloud Rate: Up to 1,200,000 pts/s with multiple returns enabled.

• Operating Temperature: Reliability maintained from -20° to 50° C.

• Weight: Optimized for Matrice 350 RTK and Matrice 300 RTK platforms.

• Supported Lenses: Integrated mapping camera with professional CMOS sensor.

Core System Capabilities

High-Precision Reality Capture

The Zenmuse L3 delivers survey-grade geospatial data by combining frame LiDAR with a high-performance internal measurement unit. This synergy allows for the capture of precise structural details even during high-speed flight manoeuvres. For professional pilots, this ensures total clarity and confidence when producing 3D reconstructions for architecture, engineering, and construction projects.

Superior Canopy Penetration

Equipped with the ability to process multiple returns, the L3 is uniquely effective at mapping terrain through dense tree cover. The laser pulses are capable of passing through gaps in foliage to reach the ground surface, enabling the creation of accurate digital terrain models. This is a critical advantage for forestry management and land surveying in overgrown or rural regions.

Streamlined Integrated Workflow

The L3 offers a true turnkey solution when integrated into the DJI Enterprise software ecosystem. Operators can monitor data quality as it is captured using the LiveView feature and then move directly into DJI Terra for high-accuracy post-processing. This end-to-end workflow minimizes the need for third-party software and reduces the time from data collection to final delivery.

Operational Workflows & Safety

Geospatial Surveying & Mapping: The L3 allows for rapid coverage of expansive sites while maintaining centimetre-level accuracy. The system is designed to meet the rigorous requirements of professional topographic mapping, providing dense point clouds that can be color-coded by height or reflectivity for easier analysis.

Infrastructure Inspection: For utility and energy sectors, the L3 is ideal for mapping power lines and pylons. Its superior penetration allows for the precise measurement of vegetation encroachment risks. The ruggedized IP54-rated housing ensures the payload remains protected against dust and moisture during long shifts at remote industrial sites.

Forestry & Environmental Management: The system's multi-return capability allows environmentalists and forestry managers to calculate tree heights and canopy density with microsecond-level precision. This data is essential for managing natural resources and monitoring ecological changes over time.

Frequently Asked Questions

How does the multi-return feature assist in land surveying?

The multiple return capability allows the LiDAR pulses to hit several targets at different depths. In areas with vegetation, some of the laser energy passes through the leaves to hit the ground, allowing the system to distinguish between the top of the canopy and the actual ground surface.

What is the advantage of Point Cloud LiveView?

Point Cloud LiveView allows the pilot to see a real-time visualization of the 3D data as it is being collected. This ensures that the mission has achieved complete coverage of the target area, eliminating the need for costly return flights due to missing data.

Why is the integrated IMU important for LiDAR accuracy?

The internal measurement unit (IMU) tracks the aircraft's exact orientation and movement during flight. By synchronizing this data with the LiDAR scans, the system can precisely calculate the position of every point in the cloud, resulting in the high horizontal and vertical accuracy required for professional mapping.

What’s in the Box

• 1 x DJI Zenmuse L3 LiDAR System

• 1 x 1-Year Auto-Activation Standard Protection Plan

• 1 x High-Speed Storage Card

• 1 x Hard Carrying Case

• 1 x User Manual and Safety Guidelines

Dronedesk Expert Tip: The Zenmuse L3 captures enormous amounts of data at up to 2 million points per second. Use Dronedesk to manage your large-scale geospatial missions and ensure all flight logs, battery cycles, and maintenance schedules for your Matrice 400 fleet are centrally recorded. This saves your team hours of administration, allowing you to focus on high-efficiency data capture.
