DJI Zenmuse H30 Multi-Sensor Payload with 1-Year Standard Protection Plan

The DJI Zenmuse H30 is the ultimate multi-sensor flagship payload designed for all-weather, 24/7 mission success. By integrating high-resolution zoom, wide-angle, and laser range finding modules, it solves the challenge of complex aerial data acquisition in public safety and infrastructure inspection. This system ensures critical visibility in both extreme daylight and low-light environments for professional operators.

DJI Zenmuse H30 Multi-Sensor Payload - Unmatched All-Weather Vision

The Zenmuse H30 series represents a generational leap in aerial intelligence, condensing five major sensor modules into a single, ruggedized housing. This multi-sensor flagship is engineered to transcend the limitations of traditional vision, providing high-fidelity data for energy inspections and emergency response. By employing cutting-edge intelligent algorithms, it delivers an unprecedented ROI through reduced mission times and superior imaging standards.

• Integrated five-module architecture for total situational awareness.

• Revolutionary night vision capabilities for 24/7 operational readiness.

• Powerful 400x digital zoom for safe, long-distance identification.

• IP54-rated protection for reliable performance in adverse weather.

• High-accuracy laser rangefinder reaching targets up to 3,000 meters.

• Enhanced NIR auxiliary light for improved low-light performance.

• Seamless integration with the Matrice 350 RTK and M300 RTK platforms.

• Smarter multi-scenario operations through advanced DJI software.

Performance & Technical Specifications

Pro Insight: The H30's IP54 rating ensures that complex inspections can continue safely in dusty or damp conditions that would ground lesser sensors.

• Digital Zoom: Up to 400x.

• Ingress Protection: IP54 rated for environmental adaptability.

• Weight: 920 ± 5 g.

• Operating Temperature: -20° to 50° C (-4° to 122° F).

• Laser Rangefinder Range: 3 m to 3,000 m.

• Wide-Angle Sensor: 1/1.3-inch CMOS with 48 MP effective pixels.

• Zoom Camera Sensor: 1/1.8-inch CMOS with 40 MP effective pixels.

• Dimensions: 170 × 145 × 165 mm.

Advanced Multi-Sensor Synergy

The H30 integrates five major modules including a 40MP zoom camera and a 48MP wide-angle sensor. For professional pilots, this means you no longer have to choose between context and detail; you can capture expansive 48MP overviews while simultaneously utilizing the 34x optical zoom to inspect specific components. This integration streamlines workflows by providing all necessary data types in a single flight, significantly reducing battery cycles and field time.

Intelligent Night Vision and Perception

Equipped with enhanced night vision and an NIR auxiliary light, the H30 transforms night time operations from high-risk to high-efficiency. The system utilizes cutting-edge algorithms to penetrate darkness, making it an essential tool for public safety and search and rescue. The ability to switch between visual and night-optimized modes ensures that targets remain visible even as light levels fluctuate during twilight missions.

Precise Long-Range Data Acquisition

The built-in laser rangefinder provides precise coordinate and distance data for objects up to 3,000 meters away. This capability is critical for infrastructure inspections and forestry management, where standing off at a safe distance is mandatory. The information synchronization ensures that all captured data is tagged with accurate geospatial coordinates, which is vital for post-mission analysis and reporting within the DJI ecosystem.

Operational Workflows & Safety

Public Safety & Search and Rescue: The H30 allows teams to deploy at night with confidence. Utilizing the NIR auxiliary light and night vision sensors, pilots can identify heat signatures or visual anomalies from high altitudes. The laser rangefinder provides ground teams with exact GPS coordinates for rapid intervention, bridging the gap between aerial discovery and tactical response.

Critical Infrastructure Inspection: For high-voltage power line or dam inspections, the 400x digital zoom enables safe standoff distances. Pilots can identify structural cracks or hardware corrosion without entering electromagnetic interference zones. The IP54 rating protects the hardware from environmental debris, ensuring the payload remains functional throughout extended seasonal inspection cycles.

Environmental & Forestry Management: Surveyors can use the wide-angle 48MP sensor to map large forested areas while using the zoom camera to identify specific species or signs of disease. The 3,000m rangefinder aids in calculating tree heights and canopy density from a fixed hover position, enhancing safety in mountainous or uneven terrain.

Frequently Asked Questions

How does the H30 improve upon previous Zenmuse models for night operations?

The H30 utilizes a dedicated NIR auxiliary light and advanced intelligent algorithms that transcend standard night vision. This allows it to maintain clear vision and stable images in near-total darkness, whereas previous models often required significant ambient light or thermal-only solutions for night time success.

Why is the IP54 rating significant for enterprise drone payloads?

An IP54 rating means the payload is protected against dust ingress and splashing water from any direction. For enterprise users, this ensures that sudden rain showers or dusty construction environments do not damage the sensitive internal optics or electronics, maximizing the lifespan of the hardware.

How does the 400x digital zoom benefit professional inspection pilots?

The 400x digital zoom allows for the identification of serial numbers or micro-cracks from a safe distance. This is vital for avoiding obstacles like power lines or venting gases, allowing the pilot to gather high-resolution evidence without risking the aircraft in high-hazard areas.

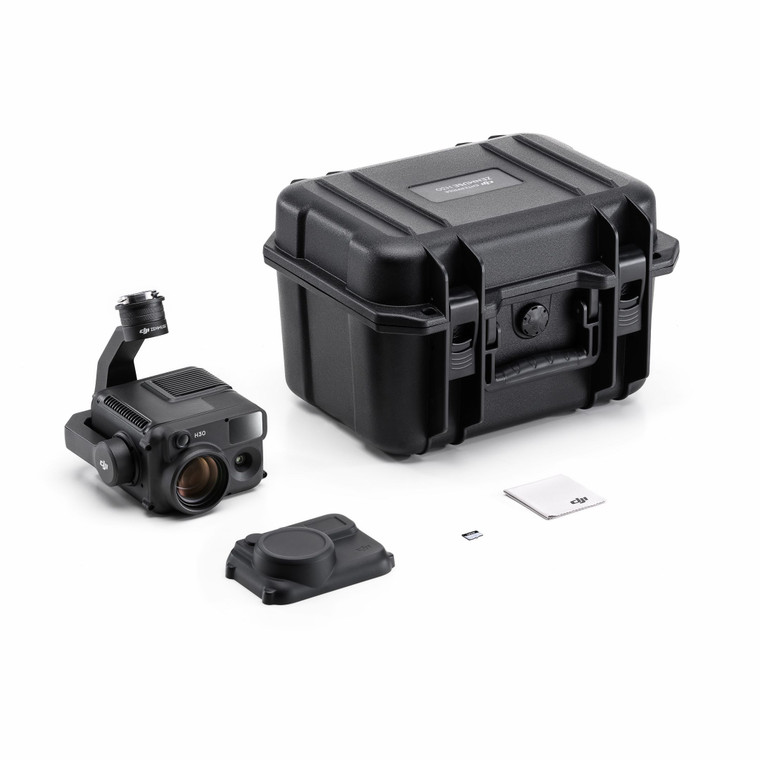

What’s in the Box

• 1 x DJI Zenmuse H30 Multi-Sensor Payload

• 1 x 1-Year Auto-Activation Standard Protection Plan

• 1 x Hard Storage Case

• 1 x Lens Cap and Cleaning Kit

• 1 x MicroSD Card (High Speed)

• 1 x User Manual and Safety Guidelines
