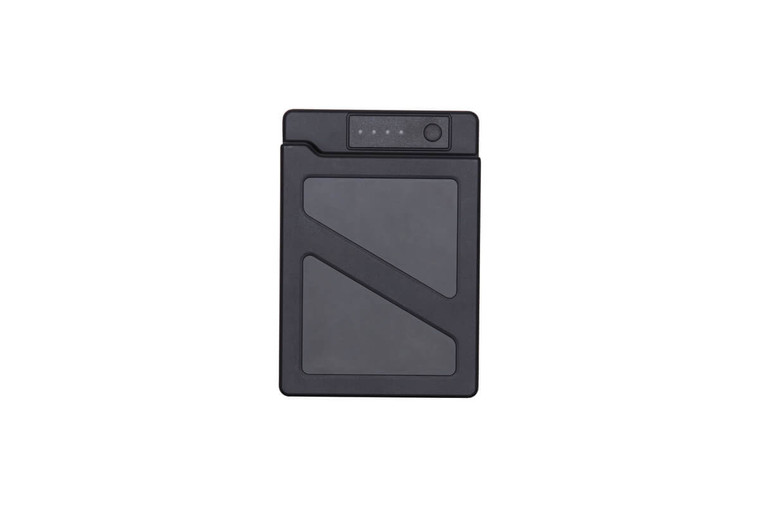

DJI Enterprise Matrice 200 Series TB55 Intelligent Flight Battery (High Capacity)

The DJI Matrice 200 Series Intelligent Flight Battery (TB55) is a high-capacity 7660 mAh power solution engineered for long-endurance enterprise missions. Featuring a built-in self-heating system, it ensures reliable flight performance in cold-weather environments, providing the sustained energy required for complex industrial inspections and search and rescue operations.

DJI Matrice 200 Series Battery - High-Capacity Endurance for Industrial Missions

The TB55 Intelligent Flight Battery is designed to maximize the operational window for DJI’s professional Matrice 200 series airframes. With an increased capacity of 7660 mAh, this battery provides significantly longer flight times compared to standard alternatives, allowing operators to complete large-scale surveying and inspection tasks with fewer interruptions. Its intelligent circuitry communicates directly with the aircraft, providing real-time telemetry and health data to ensure total mission safety.

• Large 7660 mAh capacity for extended mission duration and reduced downtime.

• Integrated self-heating technology allows for safe operation in low-temperature climates.

• Advanced battery management system tracks cycles, voltage, and health in real-time.

• Specifically optimized for dual-battery configurations to provide airframe redundancy.

• High-density LiPo 6S architecture supports professional multi-sensor payloads.

• Quick-release design enables rapid, efficient swaps between flight sessions.

• Engineered for reliability across diverse industrial, utility, and public safety applications.

Performance & Technical Specifications

Pro Insight: The TB55 is built for high-demand environments, maintaining thermal stability even when powering dual-gimbal configurations or high-intensity thermal sensors.

• Max Flight Time: Up to 38 minutes (Depending on payload configuration)

• Capacity: 7660 mAh

• Battery Type: LiPo 6S

• Op. Temperature: -20° to 50° C (-4° to 122° F)

• Max Wind Resistance: 12 m/s

• Ingress Protection: IP43 (When installed on compatible aircraft)

Core System Capabilities

Thermal Versatility

The TB55 features an internal self-heating system that activates automatically in cold conditions. This ensures the battery remains at an optimal temperature for take off and sustained flight, preventing the voltage drops commonly associated with sub-zero operations in infrastructure and utility inspections.

Intelligent Data Feedback

Internal sensors monitor the health of each cell, transmitting critical information such as cycle count and real-time voltage to the DJI Pilot interface. This level of transparency allows pilots to proactively manage their power assets and ensure every flight stays within safe operational limits.

Redundant Power Delivery

When used in the dual-battery configuration of the Matrice 200 series, the TB55 provides essential redundancy. This system allows for balanced power draw and ensures that if one battery experiences an issue, the aircraft can safely return to home on the remaining power source.

Operational Workflows & Safety

• Public Safety: Provides the long-duration power needed for persistent aerial surveillance and search and rescue efforts in harsh terrain.

• Energy Inspection: Supports dual thermal and visual camera arrays for detailed audits of power lines and solar farms.

• Geospatial Surveying: Enables high-efficiency mapping missions by sustaining power for RTK modules and precision surveying sensors.

Compatible Products

• Aircraft Platforms: DJI Matrice 200, Matrice 210, Matrice 210 RTK, and Matrice 200 Series V2.

• Charging Equipment: Matrice 200 Series Charging Hub (IN2CH) and 180W Power Adapter.

Frequently Asked Questions

Can the TB55 be used interchangeably with the TB50?

While both fit the Matrice 200 series, the TB55 offers significantly higher capacity for longer missions. They should not be mixed within the same flight pair to ensure balanced power delivery.

How do I activate the self-heating feature?

The battery automatically detects low temperatures and initiates heating to reach a safe operating state before the motors arm, ensuring reliable cold-weather performance.

What is the best storage practice for the TB55?

The intelligent management system will automatically discharge the battery to a storage-safe level if left unused for extended periods to preserve cell longevity.

What’s in the Box

• 1x DJI Matrice 200 Series Intelligent Flight Battery (TB55)

Dronedesk Expert Tip: In our field testing, we have found that utilizing the TB55 in conjunction with Dronedesk's 'Flight Logging' and 'Asset Management' features allows you to track battery cycle counts and health history, ensuring your industrial fleet remains mission-ready and compliant with maintenance schedules.
