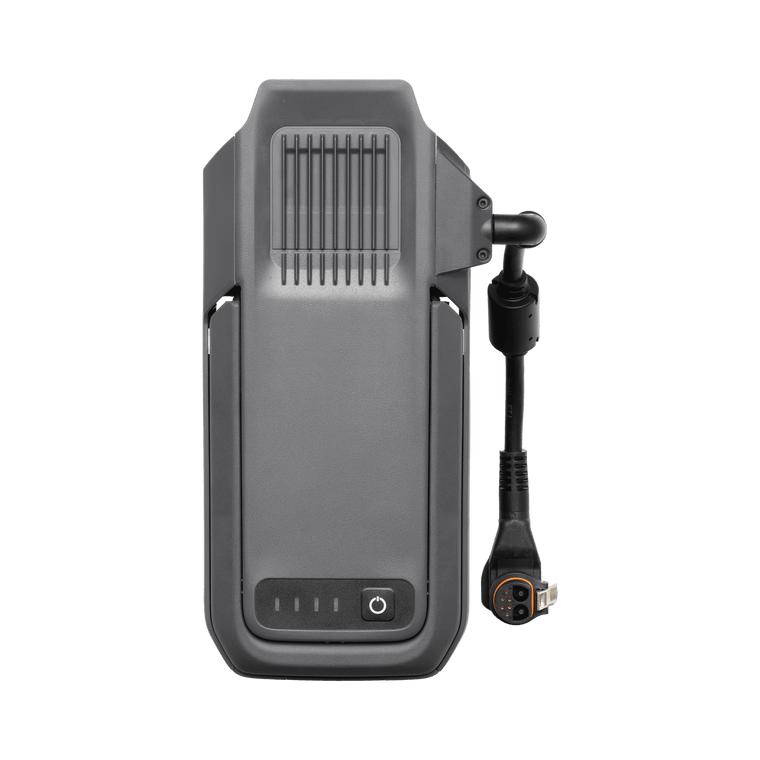

DJI Matrice 400 TB100C Tethered Intelligent Flight Battery

The DJI TB100C is a specialized high-capacity tethered battery designed exclusively for the DJI Matrice 400. It eliminates flight time constraints by enabling continuous, cable-fed power for stationary aerial missions such as 24-hour surveillance, persistent communication relays, and long-duration emergency lighting.

DJI TB100C - Persistent Power for the Matrice 400

The DJI TB100C transforms the Matrice 400 from a standard flight platform into a permanent aerial monitoring station. By integrating with tethered ground stations, the TB100C provides an uninterrupted energy stream, allowing the aircraft to remain airborne for the duration of an entire mission shift. It features a built-in battery backup that offers roughly 15-20 minutes of failover time, ensuring a safe landing if ground power is ever interrupted. This is the essential tool for large-scale event security, critical infrastructure monitoring, and disaster response where mission persistence is non-negotiable.

• High-capacity 20,254 mAh architecture designed for the M400's high-draw systems.

• Continuous cable power for unlimited hovering duration.

• Integrated failover protection with a 15-20 minute battery backup for safe recovery.

• Optimized for the BS100 Battery Station, allowing for rapid in-box charging.

• Durable, industrial-grade build rated for 400 charge cycles.

• Persistent situational awareness for public safety and telecommunications relays.

• Seamless integration with the Matrice 400's digital power management system.

Performance & Technical Specifications

• Battery Type: Li-ion (Tethered Configuration).

• Capacity: 20,254 mAh.

• Energy: 977 Wh.

• Operating Temperature: -20° to 50°C.

• Failover Time: Approximately 15-20 minutes.

• Charging Interface: DJI BS100 Intelligent Battery Station.

• Cycle Life: 400 charge cycles.

Compatible Products

The TB100C is a specialized ecosystem component designed for the Matrice 400's unique power requirements.

• Primary Aircraft: DJI Matrice 400.

• Charging Hardware: DJI BS100 Intelligent Battery Station.

• Payload Support: Supports high-draw payloads like the Zenmuse H30T, Zenmuse L3, and Zenmuse S1 Spotlight.

• Software: Fully supported by DJI Pilot 2 and DJI FlightHub 2 for real-time power telemetry.

Frequently Asked Questions

Can the TB100C be used on the Matrice 350 RTK?

No. The TB100C is specifically designed for the structural and electrical architecture of the Matrice 400. The Matrice 350 RTK uses the TB65 battery series and is not compatible with the TB100 line.

How does the system handle a ground power failure?

The TB100C features an automatic failover system that switches to its internal reserve in less than 1 millisecond. The operator will receive an immediate alert on the DJI Pilot 2 app, allowing for 15-20 minutes of flight time to either restore power or land safely.

What’s in the Box

• 1 x DJI Matrice 400 TB100C Tethered Battery

Dronedesk Expert Tip: For maximum efficiency, use the TB100C in "Persistent Mode" within DJI Pilot 2. This optimizes the M400's cooling systems for stationary hovering, ensuring the aircraft remains within safe thermal limits during 24-hour operations.
