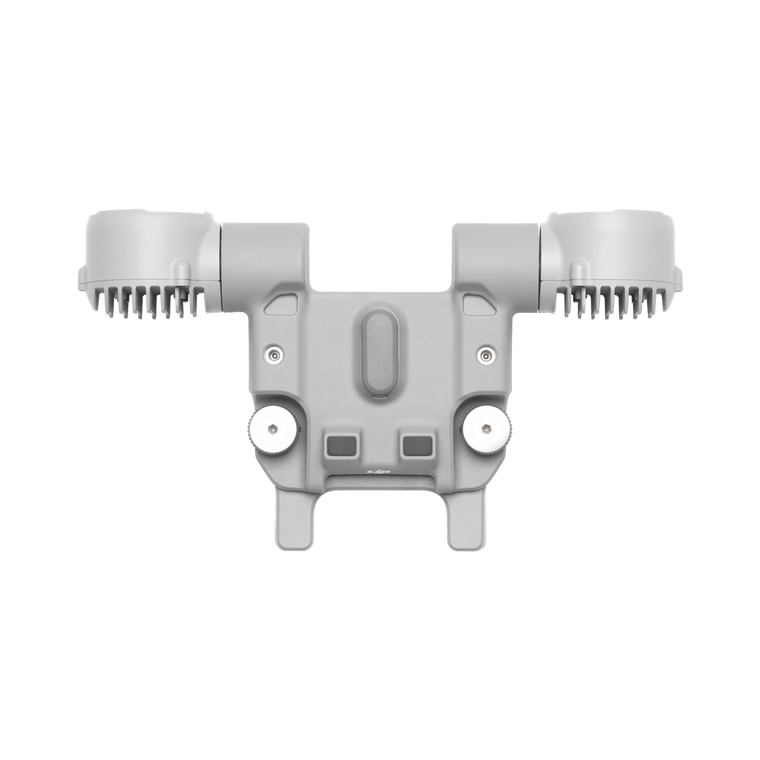

DJI AL1 Spotlight for Matrice 4 Series - 30W High-Power Intelligent Aerial Lighting

Precision Illumination from Above

The high-intensity lighting solution for night time search, rescue, and security operations.

The DJI AL1 Spotlight is a lightweight, high-power aerial illumination payload designed to eliminate the challenges of low-light missions. Delivering up to 30W of lighting power, this intelligent spotlight integrates seamlessly with the DJI Matrice 4 Series to provide a stable, intense beam of light where it is needed most. Whether lighting a path for ground teams during a rescue or securing a perimeter at night, the AL1 ensures that darkness is no longer an obstacle to operational success.

At a Glance:

• Max Power: 30W high-efficiency LED

• Effective Illumination Distance: Up to 150 meters

• Weight: Only 125g (excluding bracket)

• Gimbal Integration: Synchronized movement with the aircraft camera

• Operating Temperature: -20° to 50° C (-4° to 122° F)

• Ingress Protection: IP55 rated for all-weather reliability

• Modes: Continuous on, Flashing, and Brightness Adjustment

Core Performance & Specifications

Rugged, efficient, and built for the front lines.

The AL1 is engineered to meet the demanding environmental standards of DJI’s Enterprise line up, ensuring it remains operational in conditions that would sideload lesser equipment.

• Lightweight Profile: Weighing only 125g, it preserves the aircraft's impressive flight time.

• Weather Resistance: IP55 rating allows for deployment in rain, snow, or dusty environments.

• Operating Limits: Reliable performance in extreme temperatures ranging from -20° to 50° C.

• Power Efficiency: Draws power directly from the aircraft's PSDK port for a clean, cable-free setup.

Subsystem Deep-Dives

Intelligent Lighting System: The AL1 features a 30W LED array that produces a concentrated beam capable of identifying targets and obstacles from significant altitudes. The system supports adjustable brightness levels, allowing operators to dim the light for close-up inspections or maximize output for wide-area searches.

Control Experience: Fully integrated with the DJI Pilot 2 app, the AL1 offers an intuitive interface. Pilots can toggle between constant illumination and a flashing strobe mode for signalling. More importantly, the spotlight can be set to synchronize with the drone’s gimbal, automatically pointing the light in the same direction as the camera for effortless tracking.

Power Management: Utilizing the Matrice 4 Series' advanced power distribution, the AL1 connects via the top-mounted payload port. This ensures the spotlight is powered throughout the flight without the need for external batteries, maintaining the drone's centre of gravity and aerodynamic efficiency.

Safety & Redundancy

Situational Awareness: When paired with the Matrice 4T's thermal camera, the AL1 provides a powerful 'search and identify' workflow. Thermal finds the heat signature, and the AL1 provides the visible light confirmation for ground teams.

Hardware Reliability: The spotlight includes a quick-release mounting system that is vibration-resistant. For long-term or high-vibration missions, the included hex key allows for a permanent, secure bolt-on configuration.

Ecosystem & Modular Expandability

Payload Configurations: The Matrice 4 Series is designed to support the AL1 Spotlight alongside other critical mission tools.

Dual-Payload Compatibility: The AL1 is frequently used in tandem with the DJI AS1 Speaker. This combination transforms the drone into a complete aerial communication and illumination hub for public safety and emergency response.

Use Cases

• Search and Rescue (SAR): Provide essential lighting for victims and ground search teams in remote areas.

• Infrastructure Inspection: Illuminate dark or shadowed areas of bridges, towers, or dams for high-resolution visual capture.

• Public Safety: Perimeter security and crowd monitoring during night time events or emergency incidents.

Logistics & Fulfilment

What’s in the Box:

• 1 x DJI AL1 Spotlight

• 1 x Spare Adapter Bracket

• 1 x Hex Key
