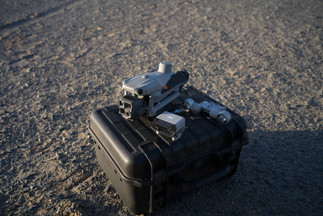

How Precision Forestry Teams Use the DJI Matrice 4E and D-RTK 3 Station for Canopy Mapping
Mapping dense forestry canopies in remote regions presents significant operational challenges for UK commercial drone operators.
Traditional visual photogrammetry techniques often fail due to canopy motion blur, inconsistent elevation profiles and unreliable cellular network coverage for RTK corrections.
Commercial forestry teams now rely on specialized hardware combinations to capture sub-centimetre orthomosaics while maintaining strict UK CAA compliance.
Why is mechanical shutter technology essential for forestry orthomosaics?
Rolling shutter distortion distorts high-speed spatial aerial data when flying lower altitude canopy surveys.
The DJI Matrice 4E addresses this issue by integrating a 4/3 CMOS sensor equipped with a mechanical shutter.
This hardware design eliminates the visual gelatin effect during continuous high-speed flight, ensuring every individual tree crown pixel maintains spatial integrity.
Visual clarity across forestry assets requires rapid shutter intervals to capture detailed spatial data at high speed.
The Matrice 4E achieves a 0.7-second shooting interval, allowing survey crews to cover expansive woodland blocks without reducing flight velocity.
Capturing sharp image edges allows photogrammetry engines to construct accurate point clouds through overlapping foliage, accelerating digital twin processing times.
Spatial data gathered across variable canopy heights requires consistent Ground Sample Distance (GSD) metrics.
By utilizing a dedicated 20MP wide-angle survey camera with 3.3μm pixel dimensions, the platform maintains image clarity in low-light woodland conditions.
This enables survey managers to calculate canopy height models and volume estimates without spatial distortion.
Upgrade your enterprise mapping capabilities with the DJI Matrice 4E available now at Dronedesk Shop.
How does the D-RTK 3 Station solve network blackspots in remote forestry mapping?
Remote commercial forestry blocks rarely offer stable 4G cellular coverage for Network RTK data streams.
The D-RTK 3 Multifunctional Station operates as an independent, off-grid positioning base, delivering real-time centimetre-level differential corrections directly to the Matrice 4E.
Eliminating reliance on public NTRIP networks prevents flight route dropouts in isolated rural valleys.
Multi-band GNSS tracking ensures robust signal lock under dense tree cover or severe terrain shadowing.
The D-RTK 3 station receives satellite signals across L1, L2 and L5 frequency bands simultaneously to maintain uninterrupted differential positioning.
This multi-frequency coverage ensures centimetre-level accuracy even when working alongside steep valley slopes or mature timber blocks.
Physical setup time in field conditions directly impacts daily survey throughput.
The station features automated base calibration algorithms that establish fixed coordinates within minutes of powering on.
This rapid signal convergence reduces pre-flight setup time, allowing operators to maximize battery flight windows during short operational weather days.
How do you maintain CAA compliance during off-grid woodland surveys?
Remote woodland surveys require comprehensive operational planning to satisfy UK Civil Aviation Authority safety standards.
Operating under a Standard Scenario or specific Operational Authorisation demands clear risk mitigations for unmapped rural hazards, transient members of the public and dense ground obstacles.
Pre-site risk assessments must account for localized terrain variations, emergency landing zones and potential loss-of-signal scenarios.
Dronedesk's flight management platform automates pre-flight RAMS creation by pulling localized airspace, hazard and terrain data into a unified digital dashboard.
Operators map out flight geographies, contingency volumes and ground risk buffers directly against automated site survey overlays.
This ensures field teams remain fully compliant with UK CAA SORA requirements before launching in off-grid locations.
Automated flight logging bridges the gap between field execution and fleet governance.
When mapping extensive forestry blocks, tracking pilot flight hours, battery cycles and maintenance intervals becomes complex.
Dronedesk automatically syncs telemetry data from field operations, eliminating manual admin and creating an auditable compliance trail for corporate clients.
What are the key camera settings for mapping dense tree canopies?
Mapping woodland environments requires tailored camera parameters to balance sunlight exposure and shadow detail.
-
Set ISO to a fixed value between 100 and 400 to prevent noise spikes under shaded canopy sections.
-
Select a shutter speed faster than 1/1000s to completely eliminate wind-induced leaf movement blur.
-
Maintain a minimum 80% frontal and 70% side overlap to ensure dense photogrammetric alignment across uniform foliage.
-
Disable automatic white balance to secure uniform color rendering across the entire orthomosaic dataset.
Calibrating these manual camera settings ensures that processing software can identify distinct keypoints within repetitive woodland patterns.
Proper exposure prevents washed-out highlights on top canopy layers while retaining shadow detail on the forest floor.
Accurate exposure control allows photogrammetry software to build continuous digital terrain models under the upper canopy layer.
How do you optimize battery management for high-hectare woodland surveys?
Maximizing operational efficiency during remote forestry mapping requires a disciplined battery rotation strategy.
Enterprise drone batteries perform differently under heavy payload demands, cold ambient temperatures and high wind conditions commonly found over exposed ridges.
Operators must calculate realistic flight times based on environmental factors rather than rely on maximum benchmark figures.
High-power charging stations powered by portable generators allow continuous dual-battery charging cycles in field conditions.
Maintaining intelligent flight batteries within optimal temperature ranges prevents voltage drops during aggressive climb maneuvers over rising terrain.
Systematic battery rotation ensures field teams maintain back-to-back flight schedules across large-scale woodland assets.
Tracking battery health metrics across hundreds of charge cycles is vital for fleet safety and asset longevity.
Dronedesk monitors individual battery cell health, internal resistance logs and historical charge cycles automatically.
Identifying degrading battery packs early prevents mid-mission power failures over dense, inaccessible timber zones.
