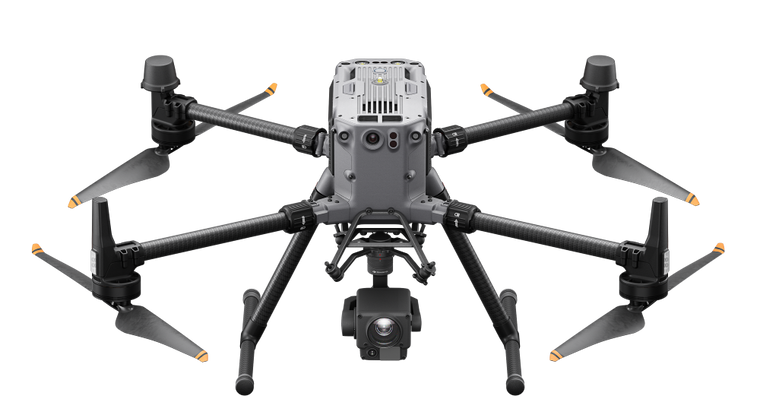

DJI Matrice 350 RTK & Zenmuse H30T Kit | Next-Gen Enterprise Drone with Multi-Sensor Thermal Payload

The Upgraded Benchmark for Enterprise Operations

The DJI Matrice 350 RTK, paired with the flagship Zenmuse H30T, represents a next-generation leap in aerial intelligence. This kit is engineered for professionals who demand maximum reliability, high-resolution thermal imaging, and a more efficient battery system for complex missions in public safety, utility inspection, and environmental monitoring.

At a Glance:

• 55-Min Max Flight Time for extended mission endurance

• IP55 Ingress Protection for operations in harsh weather

• DJI O3 Enterprise Transmission with 20km (FCC) / 8km (CE) range

• Five-Sensor H30T Payload: Wide, Zoom, Thermal, Laser Rangefinder, and NIR light

• 6-Directional Sensing & Positioning for comprehensive obstacle avoidance

• Night-Vision FPV Camera for safer 24/7 navigation

• 400 Battery Cycles with the new TB65 system, significantly lowering long-term operating costs and maximizing your Return on Investment (ROI).

Core Performance & Specifications

Built as a rugged workhorse, the M350 RTK features a high-strength airframe capable of handling payloads up to 2.7 kg while maintaining stability in high winds.

• Flight Time: Up to 55 minutes (no payload)

• Ingress Protection: IP55 (Aircraft), IP54 (RC Plus)

• Max Wind Resistance: 12 m/s

• Operating Temp: -20°C to 50°C (-4°F to 122°F)

• Max Service Ceiling: 7,000 m (with high-altitude propellers)

Subsystem Deep-Dives

Transmission System: Unrivalled Signal Stability The DJI O3 Enterprise Transmission utilizes a four-antenna design to ensure a stable, triple-channel 1080p live feed. Even in complex environments with high electromagnetic interference, the system maintains a robust connection up to 8 km (CE) from the operator.

Control Experience: The RC Plus Interface The DJI RC Plus features a 7-inch high-brightness (1200 nits) screen, perfect for direct sunlight. It includes physical buttons and customizable dials for rapid operation without taking your eyes off the screen. Pre-installed with DJI Pilot 2, it provides a streamlined interface for managing the H30T's five sensor modules simultaneously.

Power Management: Efficient TB65 Battery System The new TB65 dual-battery system supports hot-swapping, allowing you to change batteries without powering down the aircraft. This minimizes downtime between flights. The batteries are rated for up to 400 cycles, significantly lowering the cost per flight compared to previous generations.

Safety & Redundancy

The M350 RTK is designed with a Multi-Layered Redundancy approach. This includes a new Arm Lock Indicator to visually confirm the airframe is secure before take-off. For 360° awareness, the aircraft combines binocular vision and infrared sensors, which can be further enhanced with the optional CSM Radar for detecting subtle obstacles like thin wires or branches at a range of up to 30 m.

Ecosystem & Modular Expandability

The aircraft can carry up to three payloads simultaneously (dual downward and single upward gimbal configuration).

• Zenmuse H30T (Included): A multi-sensor flagship integrating a 40MP Zoom camera (400x max zoom), a 48MP Wide camera, a high-res thermal sensor (1280×1024 achieved via the UHR Infrared Image function), and a 3,000m Laser Rangefinder.

• Modular Support: Compatible with Zenmuse L2 (LiDAR), P1 (Photogrammetry), and third-party sensors via DJI Payload SDK.

Operational Intelligence

The M350 RTK excels in Automated Precision Inspections. With AI Spot-Check, the drone can recognize objects and replicate the exact framing in subsequent missions, ensuring consistent data for long-term monitoring. Integration with DJI FlightHub 2 allows for air-to-ground coordination, where live annotations and 2.5D base maps are shared in real-time across the entire team.

Logistics & Fulfilment

In the Box:

• 1x DJI Matrice 350 RTK Aircraft

• 1x Zenmuse H30T Gimbal Camera

• 1x DJI RC Plus Remote Controller

• 1x WB37 Intelligent Battery

• 1x Carrying Case

• 2x Landing Gear

• 1x 2110s Propellers (Pair)

• Tools & Spare Gimbal Dampers

• 1x Care Enterprise Plus (1-Year) Service Plan

• Please note that the Matrice 350 RTK & H30T Kit excludes the BS65 battery station and TB65 Intelligent Flight Batteries

Dronedesk Expert Tip: Managing an enterprise fleet like the M350 RTK requires rigorous documentation for regulatory compliance. Use Dronedesk to automate your flight logging and maintenance reporting. It handles the "heavy lifting" of weather and airspace intelligence gathering, allowing your team to focus on safe, efficient data capture rather than administrative paperwork.

When deploying the M350 RTK, the Arm Lock Indicator is a vital safety check. In Dronedesk, you should customize your Pre-Flight Checklist to include a mandatory "Visual Confirmation of Arm Locks" and "Gimbal Damper Integrity Check.
