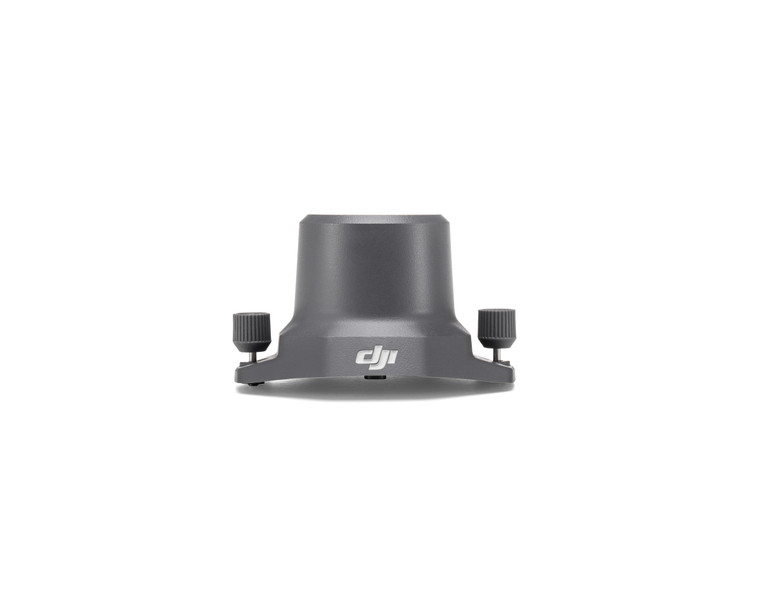

DJI Mavic 3 Enterprise RTK Module for Precision Mapping

The DJI Mavic 3 Enterprise RTK Module is the essential hardware upgrade for turning the Mavic 3E into a survey-grade aerial platform. By enabling centimetre-level positioning accuracy and microsecond-level time synchronization, it eliminates the need for Ground Control Points (GCPs), drastically reducing field time while ensuring sub-decimetre absolute accuracy for professional geospatial surveying and high-precision inspection workflows.

DJI Mavic 3 Enterprise RTK Module - Professional Precision at Scale

The Mavic 3 Enterprise RTK Module represents a critical leap for compact drone operations, bringing the power of Real-Time Kinematic positioning to a portable airframe. This module is designed for professionals who require repeatable, high-accuracy data without the logistical burden of heavy equipment. By integrating directly with the aircraft's flight control system and the O3 Enterprise transmission, it provides a seamless bridge between raw aerial data and survey-grade outputs.

• Centimetre-level positioning accuracy for high-fidelity mapping.

• Supports Network RTK, Custom Network RTK, and D-RTK 2 Mobile Stations.

• Microsecond-level TimeSync for precise image metadata alignment.

• Low power consumption for minimal impact on aircraft flight endurance.

• Tool-free installation with secure thumb-screw mounting.

• Seamless integration with DJI Pilot 2 and DJI Terra software.

• Lightweight aerodynamic design maintains flight stability in wind.

Performance & Technical Specifications

Pro Insight: This module is engineered with a focus on electromagnetic interference shielding to ensure stable signal locks even in complex industrial environments.

• Supported Positioning Accuracy: Horizontal 1 cm + 1 ppm; Vertical 1.5 cm + 1 ppm

• Time Synchronization: Microsecond-level between camera and GNSS

• Max Flight Time: Up to 42 minutes (attached to Mavic 3E)

• Operating Temperature: -10° to 40°C

• Max Wind Resistance: 12 m/s (attached to Mavic 3E)

• Dimensions: 50.2 × 40.2 × 66.2 mm

Core System Capabilities

Survey-Grade Positioning Accuracy

The RTK module provides the Mavic 3 Enterprise with the ability to achieve horizontal accuracy of 1 cm + 1 ppm and vertical accuracy of 1.5 cm + 1 ppm. This level of precision is vital for creating 2D orthomosaics and 3D models that meet the rigorous standards of AEC and geospatial professionals. By utilizing real-time corrections, the system maintains a stable position even in environments with high magnetic interference.

DJI TimeSync 2.0 Integration

At the heart of the module's mapping capability is TimeSync 2.0. This system continuously aligns the flight controller, the 4/3 CMOS camera sensor, and the RTK module. By synchronizing the positioning data to the centre of the CMOS sensor at the exact microsecond of exposure, the module ensures that each image's metadata is pinpoint accurate. This synchronization is what allows for 1:500 scale mapping results without using Ground Control Points.

Versatile Correction Source Compatibility

Operators can tailor their accuracy strategy based on the mission environment. The module supports connection to a D-RTK 2 High Precision GNSS Mobile Station for areas without cellular coverage. Alternatively, it can connect to a Network RTK service via an internet-enabled remote controller, providing flexibility for urban surveying or large-scale corridor mapping where moving a base station frequently would be inefficient.

Operational Workflows & Safety

Cadastral Surveying and Land Management

For land surveyors, the RTK module allows for the rapid acquisition of boundary data and topographic features. The high-speed 0.7-second interval shooting of the Mavic 3E, paired with RTK precision, allows for covering up to 2 square kilometres in a single flight while maintaining the geometric integrity required for legal land records and development planning.

Infrastructure Digital Twin Creation

In construction and asset management, this module enables the creation of highly accurate digital twins. By flying automated 'Oblique' missions, the drone captures multi-angle imagery with RTK-tagged coordinates. These images are then processed in DJI Terra to produce measurable 3D models of bridges, buildings, or cell towers, allowing for remote inspections and precise volumetric calculations.

Public Safety Incident Reconstruction

First responders use the RTK module for rapid accident scene reconstruction. Within minutes of arriving at a scene, a pilot can capture a series of high-precision photos that are automatically stitched into a 3D map. This preserves the scene in digital form with centimetre accuracy, providing forensic-grade evidence that can be analysed long after the physical road or site has been cleared.

Frequently Asked Questions

How does the RTK module affect the Mavic 3E flight time?

While the module draws a small amount of power from the aircraft battery, the impact is minimal. The Mavic 3 Enterprise maintains a maximum flight time of approximately 42 minutes with the RTK module installed, ensuring you still have ample time to complete large mapping missions on a single charge.

Why is TimeSync important for mapping accuracy?

Without TimeSync, there is a slight delay between the GPS coordinate being recorded and the camera shutter firing. At high flight speeds, even a millisecond delay can result in several centimetres of error. TimeSync 2.0 eliminates this lag, ensuring the coordinate matches the exact centre of the image.

How do I connect the module to a correction source?

The module is managed through the DJI Pilot 2 app on the RC Pro Enterprise. You can choose to connect to a D-RTK 2 Mobile Station via the local link or input NTRIP credentials to use a Network RTK provider via a Wi-Fi or 4G connection on the remote.

What's in the Box

• Mavic 3 Enterprise RTK Module
